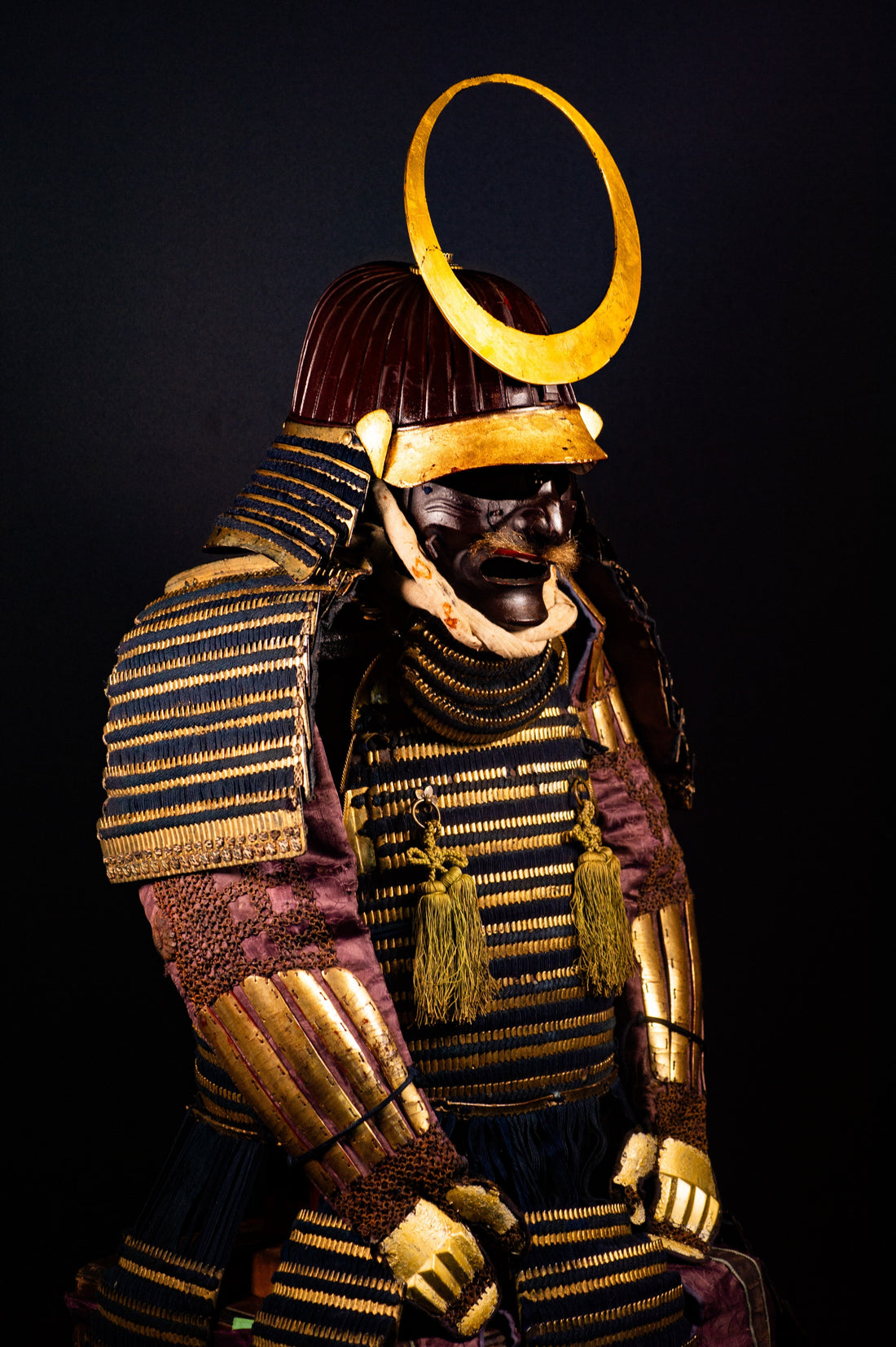

Parts of Samurai Armor Explained: A Complete Guide to Japanese Armor
A complete suit of samurai armor is far more than a helmet and breastplate. It is a carefully constructed system of protective components designed to defend different parts of the body while allowing the wearer to move, ride a horse, and use weapons.
For new collectors, however, the many Japanese names can be confusing. What is the difference between a kabuto and a menpo? What are the hanging sections below the cuirass called? Which parts are most commonly missing from antique armor sets?
This guide introduces the principal parts of traditional Japanese samurai armor, explains their functions, and highlights important details collectors should examine when buying an antique suit.
1. Kabuto: The Samurai Helmet
The kabuto is the helmet and one of the most recognizable parts of samurai armor.
Traditional kabuto were generally constructed from iron plates that were riveted or joined together to form the helmet bowl, known as the hachi. The shape, number of plates, rivet style, and decorative elements vary considerably depending on the period and the armor-making tradition.
Some common kabuto styles include:
-
Hoshi-bachi kabuto: A helmet with prominent raised rivet heads
-
Suji-bachi kabuto: A helmet with visible raised ridges between the plates
-
Zunari kabuto: A practical helmet made with a relatively small number of large iron plates
-
Kawari kabuto: An unusually shaped or highly decorative “extraordinary helmet”
The helmet bowl is often considered one of the most important and valuable components of a suit. In some historical armor sets, an older kabuto was preserved while other components were repaired or replaced over several generations.
Important Kabuto Components
Maedate
The maedate is the frontal crest attached to the front of the helmet.
Maedate may take the form of horns, religious symbols, animals, plants, family crests, or abstract designs. Many were made from lightweight materials such as wood, leather, or papier-mâché so that they would not make the helmet excessively heavy.
Because maedate are detachable and relatively fragile, the crest accompanying an antique helmet may be a later replacement.
Fukigaeshi
The fukigaeshi are the turned-back sections on either side of the helmet.
They developed from protective elements and also became important decorative surfaces. Family crests, known as kamon, were frequently displayed on the fukigaeshi.
Shikoro
The shikoro is the series of protective plates hanging from the rear and sides of the helmet.
It protects the neck while allowing movement. The plates may be made from lacquered iron, leather, or a combination of materials and are commonly joined with silk or cotton lacing.
2. Menpo: The Facial Armor
The menpo, also written as mempo, is a type of protective face mask.
Menpo were commonly made from lacquered iron or leather and were designed to protect part of the face. They also helped stabilize the helmet by providing a secure point for the helmet cords.
Many masks were modeled with dramatic facial expressions. They may feature wrinkles, teeth, moustaches, prominent noses, or intimidating expressions intended to give the warrior a powerful appearance.
Types of Samurai Facial Armor
Happuri
The happuri protects the forehead and cheeks while leaving most of the face uncovered.
Hanbo
The hanbo protects the chin and lower jaw but usually does not cover the nose.
Menpo
The standard menpo protects the lower half of the face and normally includes a nose.
Somen
The somen is a full-face mask covering nearly the entire face. It is less commonly encountered than the standard half mask.
Yodarekake
The plates suspended below the mask are called the yodarekake.
They protect the throat and upper neck. As with the shikoro, these plates are usually lacquered and connected with lacing.
When examining an antique menpo, collectors should look carefully at the interior surface. Age, lacquer condition, attachment points, cord holes, and signs of repeated use can provide valuable information.
3. Do: The Cuirass
The do, sometimes written as dō, is the main body armor or cuirass.
It protects the chest, abdomen, back, and sides of the torso. The construction of the do changed considerably as Japanese warfare evolved.
Earlier armor often incorporated many small scales or narrow plates connected with extensive lacing. Later armor, particularly armor associated with the Sengoku and Edo periods, frequently used larger iron plates to provide greater strength and simplify construction.
Common Types of Do
Hon Kozane Do
A hon kozane do is constructed using many small individual scales known as kozane. These scales were laced together to form flexible protective sections.
Genuine individual-scale construction requires a great deal of labor and is generally associated with higher-quality traditional armor.
Kiritsuke Kozane Do
A kiritsuke kozane do is made to imitate the appearance of individual scales, but the visible scale shapes are formed from longer continuous strips.
This construction was more efficient while preserving the traditional appearance of kozane armor.
Okegawa Do
The okegawa do is constructed from horizontal or vertical iron plates joined together. It became widely used because it offered practical protection and required less complex lacing than earlier scale armor.
Nimai Do
A nimai do is a cuirass made in two principal sections, usually connected by hinges on one side and tied on the other.
Gomai Do
A gomai do consists of five connected sections. Its folding construction makes it easier to store and transport.
When examining a do, do not judge it by the exterior alone. The interior may reveal the plate construction, hinges, repairs, old labels, inscriptions, or evidence that components were assembled during different periods.
4. Kusazuri: Protection Below the Cuirass
The kusazuri are the sections suspended from the lower edge of the do.
They protect the hips and upper thighs without completely restricting the wearer’s legs. Each section is made from several overlapping horizontal plates joined with lacing.
The number and arrangement of kusazuri vary among different armor styles.
Because they hang below the cuirass and are repeatedly moved during handling, antique kusazuri often show damage such as:
-
Broken or weakened lacing
-
Cracked lacquer
-
Missing plates
-
Reattached sections
-
Uneven lengths caused by earlier repairs
Minor deterioration is common in genuine antique armor and does not automatically make a suit undesirable. The importance of the damage depends on its extent, originality, appearance, and effect on the stability of the armor.
5. Sode: The Shoulder Guards
The sode are the protective guards worn at the shoulders.
They are normally constructed from rows of lacquered plates connected with lacing. Earlier styles of armor, particularly the large armor associated with mounted warriors, could have very broad rectangular sode.
As armor became more compact and mobility became increasingly important, shoulder protection generally became smaller and easier to move in.
Large sode can create a particularly impressive appearance when armor is displayed. However, collectors should confirm that both sides match in construction, lacing, dimensions, decoration, and age.
It is not unusual for an old armor set to contain replacement components, and one sode may occasionally have been restored or reconstructed separately from the other.
6. Kote: Armored Sleeves
The kote are armored sleeves protecting the arms and hands.
Iron plates, chainmail, and textile are combined to provide protection without completely restricting movement. The metal components may protect the forearm, elbow, upper arm, and back of the hand.
A pair of kote is usually connected across the back or shoulders by fabric straps or a supporting garment.
Antique kote are vulnerable to deterioration because they contain several different materials. Common condition issues include:
-
Torn or faded fabric
-
Corroded chainmail
-
Detached iron plates
-
Missing hand protection
-
Old textile reinforcement
-
Differences between the left and right sleeve
The British Museum describes surviving armor examples in which the kote combine chainmail with reinforced steel plates, demonstrating the mixed-material construction typical of Japanese arm protection.
7. Haidate: Thigh Protection
The haidate protect the front and sides of the thighs.
They resemble a divided apron and are usually tied around the waist. Small iron plates or chainmail are attached to a textile foundation, allowing the wearer to walk and sit more easily than would be possible with rigid leg armor.
Haidate are sometimes missing from incomplete antique armor sets. Their textile base also means that they may require more restoration than solid iron components.
When buying a complete suit, check whether the haidate are present and whether their style is consistent with the rest of the armor.
8. Suneate: Shin Guards
The suneate protect the lower legs.
They commonly consist of vertical iron plates attached to fabric and secured behind the calf. Some examples also incorporate chainmail around the knee or between the main plates.
Suneate were practical battlefield equipment and often show significant wear. The fabric may have been replaced, and the fastening cords are frequently newer than the iron plates themselves.
A replacement textile foundation does not necessarily mean that the metal components are modern. Japanese armor was regularly maintained, relaced, and repaired throughout its working life.
9. Wakibiki and Other Additional Protection
Some suits include smaller protective elements that are easy to overlook.
Wakibiki
The wakibiki protect the areas beneath the arms, where gaps may remain between the cuirass and the armored sleeves.
Nodowa
The nodowa is a throat guard worn around the neck.
Manjuwa
The manjuwa is a form of shoulder and upper-chest protection, often incorporating chainmail or small iron plates.
Not every complete-looking display includes all of these additional components. Their presence depends on the style, period, intended use, and completeness of the surviving armor set.
Museum collections demonstrate that surviving suits may include different combinations of kabuto, shikoro, menpo, nodowa, do, sode, kote, thigh protection, and shin guards.
10. Lacing: Odoshi
The colored lacing connecting many armor plates is called odoshi.
Odoshi is not merely decorative. It holds the protective elements together while allowing a degree of flexibility. The color, pattern, spacing, and material of the lacing strongly influence the appearance of a suit.
However, lacing is vulnerable to:
-
Sunlight
-
Humidity
-
Insects
-
Repeated handling
-
Age-related weakening
For this reason, many antique suits have been partially or completely relaced.
Newer lacing does not automatically mean the armor is a replica. A genuine Edo-period suit may contain original iron components combined with later lacquer repairs, replacement fabric, and modern lacing.
The key question is not simply whether every cord is original, but whether the restoration has been accurately described and whether the principal armor components are genuinely antique.
11. Lacquer: Urushi
Many iron and leather components were coated with Japanese lacquer, known as urushi.
The lacquer protects the underlying material from moisture while also creating a refined decorative surface. Black lacquer is common, but red, brown, gold, and other finishes can also be found.
Age-related lacquer damage may include:
-
Fine cracking
-
Flaking
-
Surface loss
-
Dullness
-
Areas of later repainting
-
Differences in color between components
Perfectly smooth and uniform lacquer throughout an allegedly old suit should be examined carefully. Genuine antique armor often displays natural variation caused by age, use, storage, and historical restoration.
At the same time, severe flaking can threaten the stability of the armor. Antique lacquer should be handled carefully and should not be cleaned with household chemicals.
Are All Parts of an Antique Suit the Same Age?
Not necessarily.
Samurai armor was functional equipment as well as a family possession. Components could be repaired, replaced, adapted, or combined with other pieces. A valuable helmet might continue to be used with a newer cuirass, while damaged textiles and lacing could be renewed many times.
Therefore, a suit containing components from different periods is not automatically fake.
Collectors should distinguish between:
-
A historically assembled antique suit
-
An antique suit with later restoration
-
A modern display assembled from miscellaneous antique parts
-
A modern reproduction made to appear old
The description should clearly explain known replacements, repairs, missing elements, and uncertain components.
What Parts Are Commonly Missing?
Incomplete armor sets are common. Frequently missing or replaced components include:
-
Maedate
-
Menpo
-
One or both sode
-
Haidate
-
Suneate
-
Hand sections of the kote
-
Small fastening cords
-
Armor storage box
-
Original display accessories
A missing component does not necessarily make an armor set unsuitable for collecting or display. However, completeness has a significant effect on visual impact, historical interest, and market value.
Buyers should always confirm exactly which components are included rather than relying only on a photograph of the assembled display.
What Should You Check Before Buying Samurai Armor?
Before purchasing an antique suit, examine the following points:
Completeness
Confirm that the helmet, cuirass, shoulder guards, armored sleeves, thigh protection, shin guards, and facial armor are included when they are shown or described.
Materials
Look for appropriate use of iron, lacquer, textile, leather, chainmail, wood, and traditional lacing.
Construction
Examine the backs and interiors of components whenever possible. Modern replicas can appear convincing from the front but often reveal simplified construction when viewed inside.
Consistency
Compare the family crests, decorative style, lacquer, lacing, dimensions, and construction of each component.
Restoration
Ask which parts have been relaced, repainted, reinforced, reconstructed, or replaced.
Condition
Old armor does not need to be perfect. Natural wear is expected, but active corrosion, unstable lacquer, broken cords, and detached plates should be clearly documented.
Seller Transparency
A trustworthy seller should provide detailed photographs and openly describe defects, restoration, uncertainty, and replacement components.
Understanding a Complete Suit of Samurai Armor
Traditional Japanese armor combines military engineering, craftsmanship, symbolism, and visual design.
The kabuto protects the head. The menpo guards the face and helps secure the helmet. The do protects the torso, while the sode, kote, haidate, and suneate defend the shoulders, arms, thighs, and lower legs. Flexible sections such as the shikoro and kusazuri allow these components to work together without completely restricting movement.
Learning the names of these parts makes it easier to understand an armor description, compare different suits, identify missing components, and appreciate the skill required to construct traditional Japanese armor.
